How Does The A/C System Work In Vehicle.

1. Introduction

The air conditioning (AC) system in a vehicle is crucial for maintaining a comfortable driving environment. It helps regulate the temperature inside the car, ensuring that both drivers and passengers can stay cool and comfortable regardless of external weather conditions. Understanding how the AC system works can help you troubleshoot issues and ensure it operates efficiently.

2. Basic Components of the AC System

Compressor

The compressor is often referred to as the heart of the AC system. It compresses the refrigerant gas, which increases both its pressure and temperature. This high-pressure, high-temperature gas then flows to the condenser. The compressor is typically driven by a belt connected to the engine.

Condenser

The condenser is located at the front of the vehicle, usually near the radiator. It dissipates the heat from the refrigerant gas. As the gas passes through the condenser, it cools down and condenses into a high-pressure liquid. The condenser works by radiating heat into the outside air, assisted by a fan.

Expansion Valve or Orifice Tube

The expansion valve (or the orifice tube, depending on the vehicle) regulates the flow of refrigerant from the high-pressure side to the low-pressure side of the system. It causes a pressure drop, which cools the refrigerant further. This is a critical step as it prepares the refrigerant for heat absorption in the evaporator.

Evaporator

The evaporator is located inside the vehicle cabin, typically in the dashboard. It absorbs heat from the cabin air and causes the refrigerant to evaporate, which cools the air. As the refrigerant evaporates, it absorbs heat from the air blowing across the evaporator, thereby cooling it down.

Blower Fan

The blower fan circulates the cooled air from the evaporator into the vehicle’s cabin. It ensures that the cooled air is distributed effectively throughout the car, enhancing overall comfort.

3. How the AC System Works

Refrigerant Cycle

The refrigerant cycle is a continuous loop that involves several stages. The compressor pumps the refrigerant gas to the condenser, where it loses heat and becomes a liquid. This high-pressure liquid refrigerant then passes through the expansion valve or orifice tube, which reduces its pressure and temperature. The cold, low-pressure refrigerant then enters the evaporator, where it absorbs heat from the cabin air and evaporates. The cycle repeats as the refrigerant returns to the compressor.

Cooling Process

The cooling process begins when the compressor compresses the refrigerant, turning it into a high-pressure gas. This gas travels to the condenser, where it releases heat and condenses into a liquid. The liquid refrigerant then flows through the expansion valve, where it cools and enters the evaporator. Inside the evaporator, the refrigerant absorbs heat from the cabin air, causing the air to cool before being blown into the cabin.

Airflow Management

The blower fan draws air from the cabin and forces it over the evaporator coils. As the air passes over the cold coils, it cools down and is then directed through the vehicle’s ventilation system. The controlled airflow ensures that the cooled air reaches all areas of the cabin.

4. System Controls

Temperature Control

The temperature inside the vehicle can be adjusted using temperature knobs or digital controls. By turning the knob or adjusting the digital setting, you control the amount of refrigerant allowed into the evaporator, thus changing the temperature of the air blown into the cabin.

Fan Speed Control

The fan speed is adjusted using the fan speed control switch. This controls how fast the blower fan operates, affecting the volume of air being circulated through the cabin. Higher speeds result in more air being moved and quicker cooling.

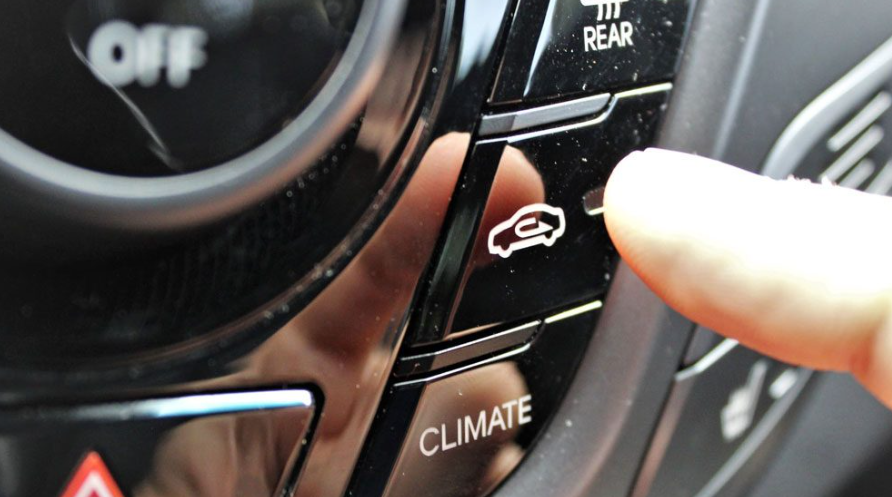

Mode Selection

Different ventilation modes can be selected to direct the airflow where it’s needed most. Common modes include face-level vents (for direct cooling), foot-level vents (for a more evenly distributed airflow), and defrost mode (to clear the windshield).

5. Common Issues and Maintenance

System Leaks

Leaks in the AC system can result in a loss of refrigerant, leading to reduced cooling performance. Common signs of a leak include a loss of cooling efficiency, strange smells, or visible signs of refrigerant around components. A professional can perform a leak test and repair any issues.

Reduced Cooling Performance

If the AC system is not cooling effectively, possible causes include low refrigerant levels, a malfunctioning compressor, or a clogged evaporator. Regular checks and servicing can help identify and fix these problems.

Regular Maintenance

Regular maintenance is essential for keeping the AC system in good working condition. This includes checking refrigerant levels, inspecting components for wear or damage, and replacing the cabin air filter. Regular maintenance helps prevent breakdowns and ensures efficient operation.

6. Conclusion

The AC system is an integral part of a vehicle's comfort and functionality. By understanding its components and how it operates, drivers can better maintain their vehicle's AC system and address any issues promptly. Regular maintenance and timely repairs ensure that the AC system continues to provide reliable cooling performance, enhancing the overall driving experience.

FAQs

1.Why is my car’s air conditioning not cooling effectively?

It might be due to low refrigerant levels, a faulty compressor, a dirty air filter, or issues with the condenser. Check and refill the refrigerant, inspect the compressor, replace the air filter, or clean the condenser.

2.What should I do if I notice a strange odor coming from the AC vents?

The odor could be caused by mold or mildew in the system, a clogged cabin air filter, or debris. Use an AC cleaner, replace the air filter, or have the system inspected and cleaned.

3.How can I tell if my AC system has a refrigerant leak?

Look for reduced cooling performance, hissing or bubbling noises, visible oil stains, or the AC system running constantly without cooling. These could indicate a refrigerant leak.

4.Why is there warm air blowing from the AC even though it is set to the coldest setting?

Possible causes include a faulty thermostat, issues with the blend door, or low refrigerant levels. Check or replace the thermostat, inspect the blend door, or refill the refrigerant.

5.How often should I have my car’s AC system serviced?

It’s recommended to service the AC system every 1 to 2 years. This includes checking and replacing refrigerant, inspecting components, and changing the cabin air filter.
