How to diagnose a failing car ac condenser?

The car condenser is one of the important parts of the car air-conditioning system. The existence of the car condenser is indispensable, and no other device can replace it. Therefore, we need to know how to diagnose whether the condenser is faulty and how to deal with the fault. Hongdao will announce them one by one here.

• Causes of Car Condenser Failure

1. Dust, dirt, scale, oxidation, etc. cause the cooling effect of the condenser to decrease. When dust, dirt, scale, oxidation and other substances accumulate on the condenser, the heat dissipation effect of the condenser will be reduced, thereby affecting the cooling effect.

2. Power failure or failure of the fan of the air-cooled condenser will also lead to a decrease in the heat dissipation effect of the condenser.

3. If the cooling water temperature is too low or the water flow rate is too large, it will also affect the cooling effect of the condenser.

4. Insufficient amount of refrigerant will also affect the cooling effect of the condenser.

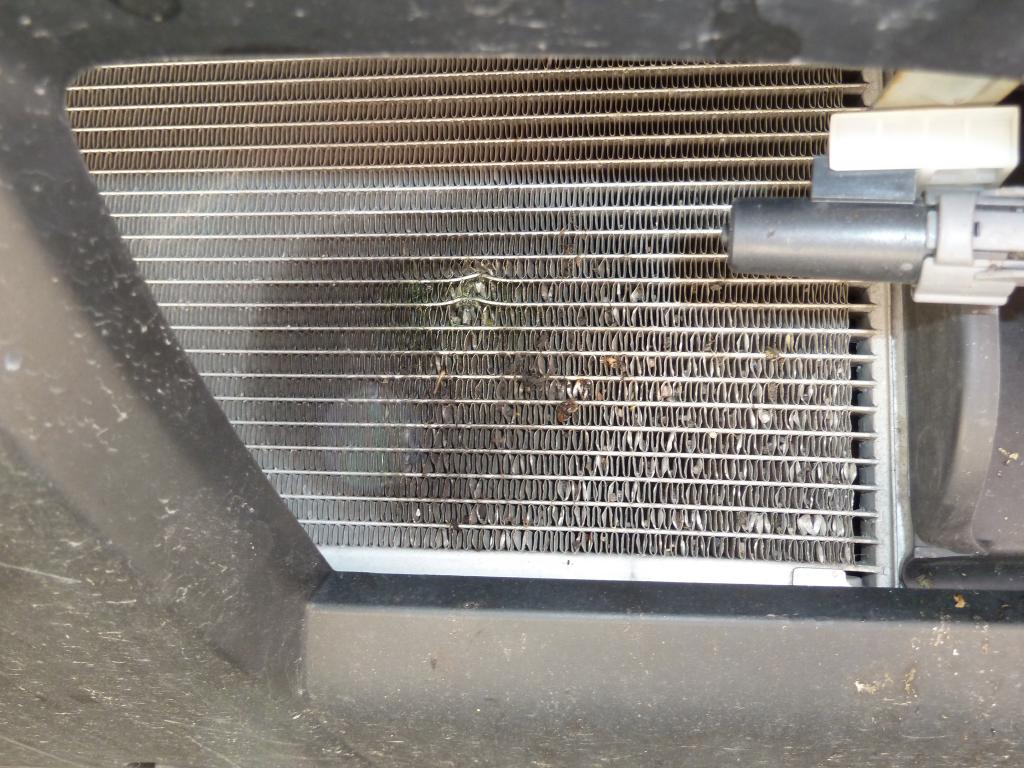

• Symptoms of car condenser failure

1. Dirt clogged

When too much refrigerant product is added or the pipeline is blocked, the system pressure will be too high. At this time, the control system will disconnect the electromagnetic clutch of the compressor and stop the compressor to prevent the pressure from rising further and damaging the system. At this time, if the compressor does not work smoothly, the air conditioner will not cool.

2. Leaking snow, the car air conditioner does not cool.

Refrigerant refers to refrigerant. It is the medium substance used to complete energy conversion in various heat engines. It usually increases power by reversible phase transition (such as gas-liquid phase transition). Refrigerant is an indispensable existence of automobile air conditioners.

3. Leakage of the condenser

The leakage of the condenser can be seen from the outside, such as scratches and bruises, oil stains seeping from the leakage point, etc. The leakage of the evaporator is hidden in the evaporation box due to the low pressure and condensation on the outer surface, so it is generally not easy to be found.

• Diagnosis of Car Condenser Faults

1. The surface of the condenser is dirty or there are sundries between the radiator and the fan motor, which leads to poor heat dissipation of the condenser. Clean the condenser. Check the operation of the fan motor.

3. Excessive refrigerant will reduce the refrigeration capacity, and part of the refrigerant should be properly discharged.

4. Scaling inside the condenser, the copper tube inside the condenser should be cleaned.

5. Check whether the condenser joint or pipe is damaged to avoid refrigerant leakage. Condenser joints and pipes should be tested with a leak detector, and if leaks are found, they should be repaired. After the repair, check for leaks here again.

6. Check whether the outer shell of the condenser and the shell of the heat sink are deformed or damaged, so as not to cause blockage of the refrigeration system pipes.

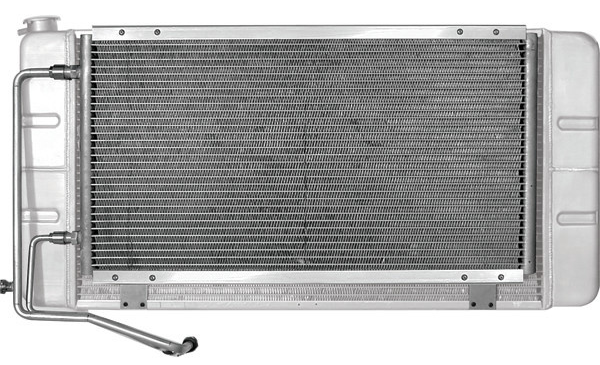

• Car Condenser Troubleshooting

1. Dirt is blocked. Nitrogen or dry compressed air can be used to blow repeatedly until it is clean and unobstructed.

2. When dust, dirt and other substances accumulate on the surface of the condenser, you can use a brush to clean the dust and debris on the surface of the condenser.

3. It is also possible to test the pressure by charging and testing, and if there is any problem, it can be solved in time.

4. Insufficient refrigerant, leak detection is required, check whether there is a leak point at the pipe joint, and replenish refrigerant after maintenance.

5. Check the air conditioner compressor parts comprehensively. The air conditioner compressor is the most important in the automotive air conditioning system as the power source of the refrigerant flow. When overhauling the air conditioner, you should pay attention to whether there is any abnormal sound at the front of the air conditioner. If there is any abnormal sound, the compressor should be repaired first to prevent it from being repaired after a period of use, which will easily lead to the loss of refrigerant.

• Conclusion

The car condenser is an important part of the refrigeration system. Its function is to convert the refrigerant from gaseous state to liquid state, so that the refrigeration system can operate normally. If the condenser fails, it will cause the refrigeration system not to work properly, and even cause damage to the equipment. Therefore, it is very important to maintain and clean the condenser regularly to ensure its proper functioning.

In order to keep the condenser in good condition, you can: regularly clean the filter, regularly check whether there are leaks at the pipe connection.

Regularly check the copper pipes for scale, and if you find any problems with the condenser, please contact a professional for repairs in time.

FAQs

Q1: What will happen if the car ac condenser fails?

If the condenser fails, it will cause the refrigeration system not to work properly, and even cause damage to the equipment.

Q2: Does the car ac condenser need regular maintenance?

Yes, regular maintenance and cleaning of the condenser is very important to keep it functioning properly. You can regularly clean the filter, check for leaks in the plumbing connections, check the copper pipes for scaling, etc.

Q3: What is the function of the car ac condenser?

The function of the condenser is to convert the refrigerant from the gaseous state to the liquid state so that the refrigeration system can operate normally.
